Taking a laser level outdoors differs from indoor use in three key ways: sunlight washes out the beam, longer distances magnify small errors, and uneven terrain makes stable setup more difficult. The solution is straightforward: use a green-beam laser with pulse mode enabled, pair it with a receiver, mount it on a solid tripod, and avoid working in direct sun when possible. This guide walks through each step and highlights four common mistakes that can easily cost you a full day of work.

Why Using a Laser Level Outdoors Is Different from Indoor Work

Indoor laser work is simple: the beam hits a wall and remains visible across the room. Outdoors, the same laser in direct midday sunlight may fade beyond 10 feet, even with a green-beam model. That is not a defect; it is physics.

Three specific challenges define outdoor laser work:

• Beam visibility: Daylight is far brighter than any construction laser. Even a high-visibility green beam at 510–530nm can disappear in direct sunlight beyond 10 to 15 feet without a receiver.
• Distance error amplification: A laser level with 1/4 inch accuracy per 100 feet, if slightly misaligned, can produce visible slope errors across a 30-meter grade run. Small inaccuracies compound over longer distances.
• Surface stability: Outdoor terrain is rarely flat. Tripods can shift on soft ground, and wind can introduce small vibrations that affect readings. Grass and gravel require extra care when positioning the setup.

Each of these challenges has a clear solution, covered in the following sections.

How to Set Up a Laser Level Outdoors

Find Stable Ground for the Tripod

Place the tripod on firm, hard ground. Soft grass or loose gravel allows the legs to sink slightly over time, which can shift readings during the project. On uneven terrain, use a tripod with adjustable legs and level each leg individually until the bubble indicator centers. If you are still comparing laser level models, our laser level buying guide explains what to look for in outdoor-rated tools.

Mount the Unit and Let It Self-Level

Secure the laser level to the tripod head and tighten all mounting screws. Power on the unit and allow the self-leveling mechanism to engage. The CM-701 self-levels within a ±3-degree compensation range. If the tripod sits outside this range, the unit sounds an alarm rather than producing an inaccurate reading, letting you know the setup needs adjustment.

Switch to Pulse Mode for Outdoor Use

Standard line mode is intended for indoor work at close distances. For outdoor tasks, switch the laser to pulse mode. Pulse mode makes the beam flash at a high frequency that appears steady to the human eye but can be detected by a laser receiver at much greater distances. Without pulse mode active, the receiver will not detect the beam.

Mount the Receiver on a Measuring Rod

Attach the laser receiver to a measuring rod and place it at the target location. When the receiver detects the beam, it emits a beep and displays a directional indicator (up, down, or at grade). This allows you to adjust rod height precisely without needing to see the beam directly.

Wait Before Marking

After powering on, wait two to three minutes before making reference marks. The optical components inside the laser level need time to reach thermal equilibrium. Measurements taken within the first minute may drift slightly as the unit warms up.

Pro Tip: Mark the tripod foot positions with chalk before moving to measure a second point. If the tripod shifts even a few millimeters between measurements, all reference marks become inconsistent.

How to See the Laser Line in Daylight

Use a Laser Receiver

A laser receiver detects the beam through a photocell sensor rather than relying on visibility to the eye. Depending on the model and operating mode, receivers can extend working range to 30–100 meters for cross-line lasers and up to 400–800 meters for rotary units. Before using a receiver, ensure pulse mode is active on the laser level; otherwise the receiver will not detect the signal.

Enable Pulse Mode

Many guides suggest that a brighter laser beam solves visibility problems in sunlight. In practice, increasing laser power from Class II (below 1mW) to Class IIIa (below 5mW) has little effect on daylight visibility because ambient sunlight is already thousands of times brighter than the beam. The contrast improvement from slightly higher output is negligible. Pulse mode, however, provides the receiver with a distinct signal pattern to detect, which is why it reliably extends working range without increasing hazard.

Choose a Green Beam for Outdoor Use

The human eye is most sensitive to light in the 510–530nm wavelength range, which corresponds to green light. At the same output power, a green laser appears roughly four times brighter to the human eye than a red laser in daylight. If you are comparing options, our green vs. red laser level guide explains the practical trade-offs, including battery life and indoor performance.

Work in Early Morning or Late Afternoon

Beam visibility drops sharply between 10 a.m. and 3 p.m. in direct sunlight. Scheduling outdoor laser work before 10 a.m. or after 3 p.m. reduces ambient light enough for the beam to remain visible at practical working distances, even without a receiver on smaller jobs. Overcast days are ideal because diffuse light eliminates the harsh contrast that washes out the beam.

Pro Tip: Your phone's front-facing camera can often detect a laser line at distances up to 100 meters. Point the lens toward the area where the beam should land and watch the screen instead of the surface directly. Front cameras typically use fewer infrared-blocking filters than rear cameras, making them slightly more sensitive to laser wavelengths. No extra equipment required.

Outdoor Projects Where a Laser Level Makes the Biggest Difference

Setting Grade for Drainage and Landscaping

Grade setting is one of the most practical outdoor laser applications. Position the laser at the reference elevation, set the receiver to your zero height at the starting stake, then move the rod to each location along the grade run. Lower the receiver by the intended drop per foot of run to create the required slope, then mark each stake at the bottom of the rod. For a detailed walkthrough, see our guide on how to use a laser level to level ground.

Leveling Ground for Patios and Decks

Before pouring a concrete slab or installing deck framing, you need a consistent horizontal reference across the entire base area. A laser level reveals high and low spots so you can grade and compact the surface accurately before committing to concrete or structural hardware. Our guide on how to use a laser level for deck posts covers post spacing, height consistency, and bracket placement.

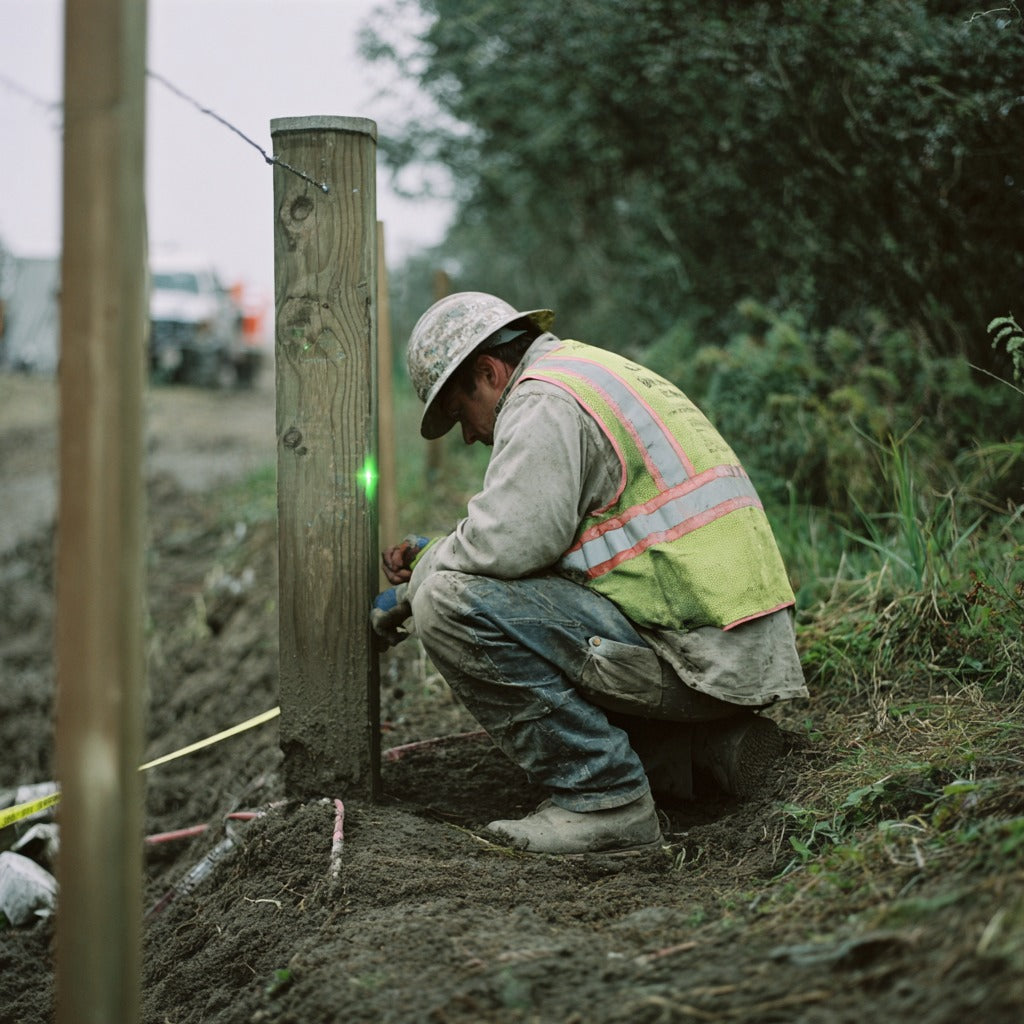

Aligning Fence Posts and Retaining Walls

Fence posts must align in a straight line and maintain consistent height along the entire run. Set the laser at one end, project the beam toward the far end, and use the receiver to mark each post hole location at the same elevation. Our fence post alignment guide explains corner angles, post depth, and how to maintain line accuracy across longer runs.

A note on range: The CIGMAN CM-701 is rated for a 100-foot working range and carries an IP54 rating for resistance to dust and light rain, which suits most yard and landscaping projects. For large grading or site work covering more than 300 feet, a rotary laser level paired with a dedicated receiver is a better choice. We have not independently tested CM-701 performance at outdoor distances beyond its rated 100-foot range.

Common Mistakes When Using a Laser Level Outdoors

Skipping the Warm-Up Period

Powering on the unit and immediately marking positions is a common setup mistake. Laser optics shift slightly as they warm from a cold start, meaning the first 60–90 seconds of readings may drift from the stabilized position.

Fix: Power on the unit, complete tripod setup, and wait two to three minutes before marking reference points.

Trying to Read the Beam Without a Receiver

In direct sunlight, a laser line can become invisible within 5–10 feet of the unit. Many users assume the laser itself is faulty when the real issue is that outdoor work typically requires a receiver.

Fix: For reference points more than 15 feet from the laser, use a receiver in pulse mode. This extends reliable detection to roughly 100 feet or more for cross-line laser levels.

Working in Direct Midday Sunlight

Even with a green-beam model, visibility drops significantly between 10 a.m. and 3 p.m. in direct sun. The result is often guesswork rather than clearly seeing the line.

Fix: Schedule outdoor laser work before 10 a.m. or after 3 p.m. If the project cannot wait, rely on a receiver and pulse mode rather than trying to see the beam directly.

Storing Wet Equipment in a Closed Case

After working in damp conditions, packing the laser directly into its case traps moisture inside. As temperatures drop overnight, condensation forms on circuit boards and internal components.

Fix: Wipe the unit dry and allow it to air out for at least 30 minutes before storing it. Never seal a wet laser in a closed case.
